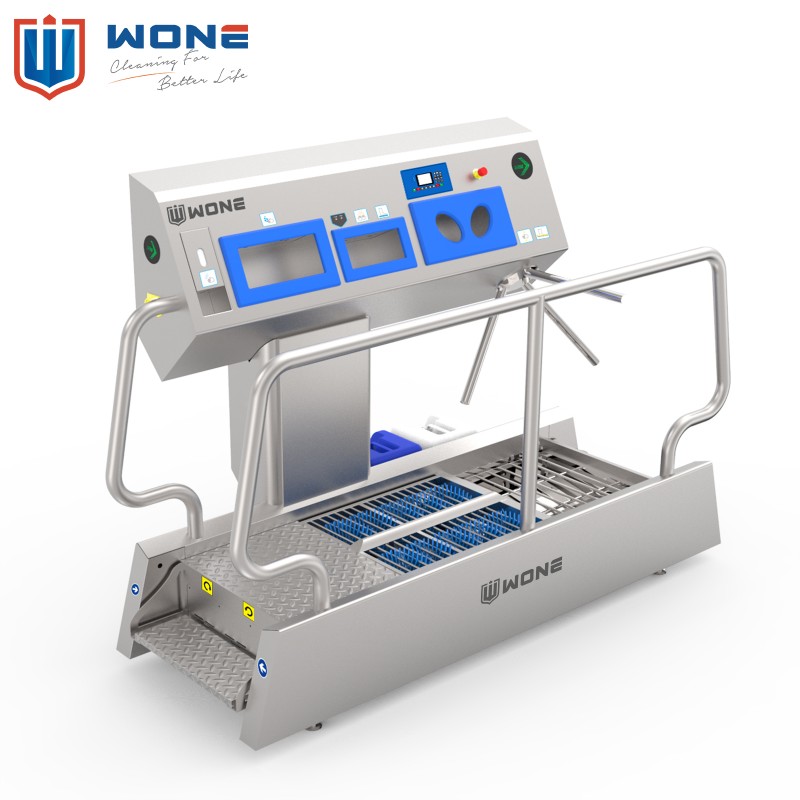

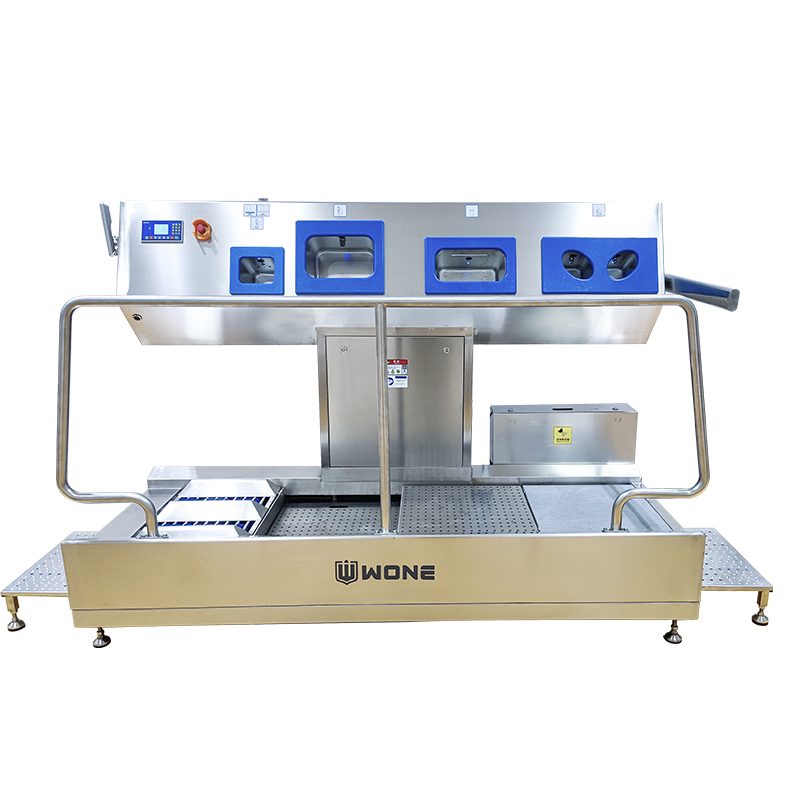

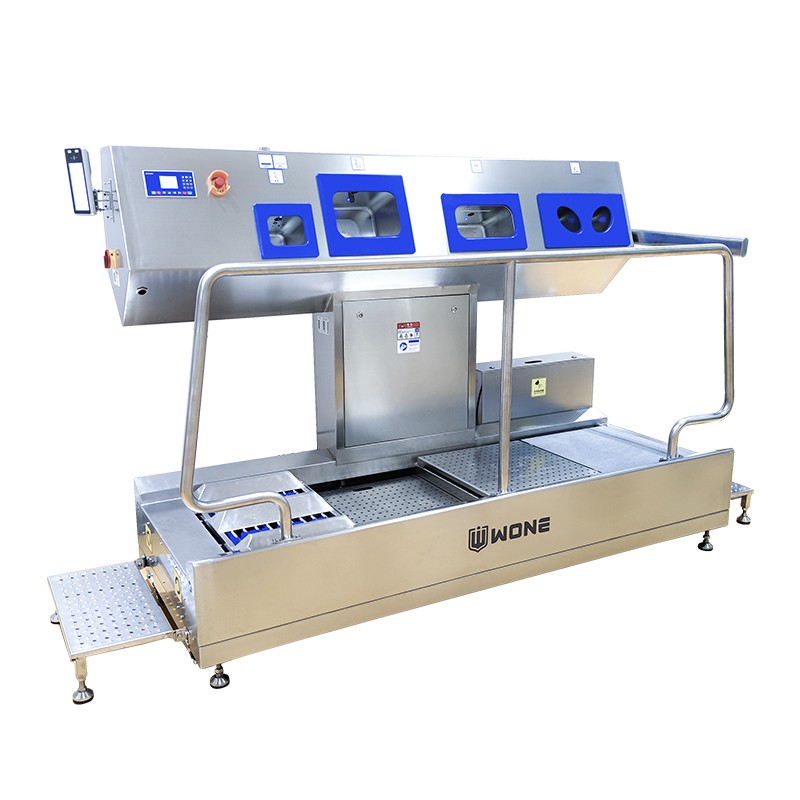

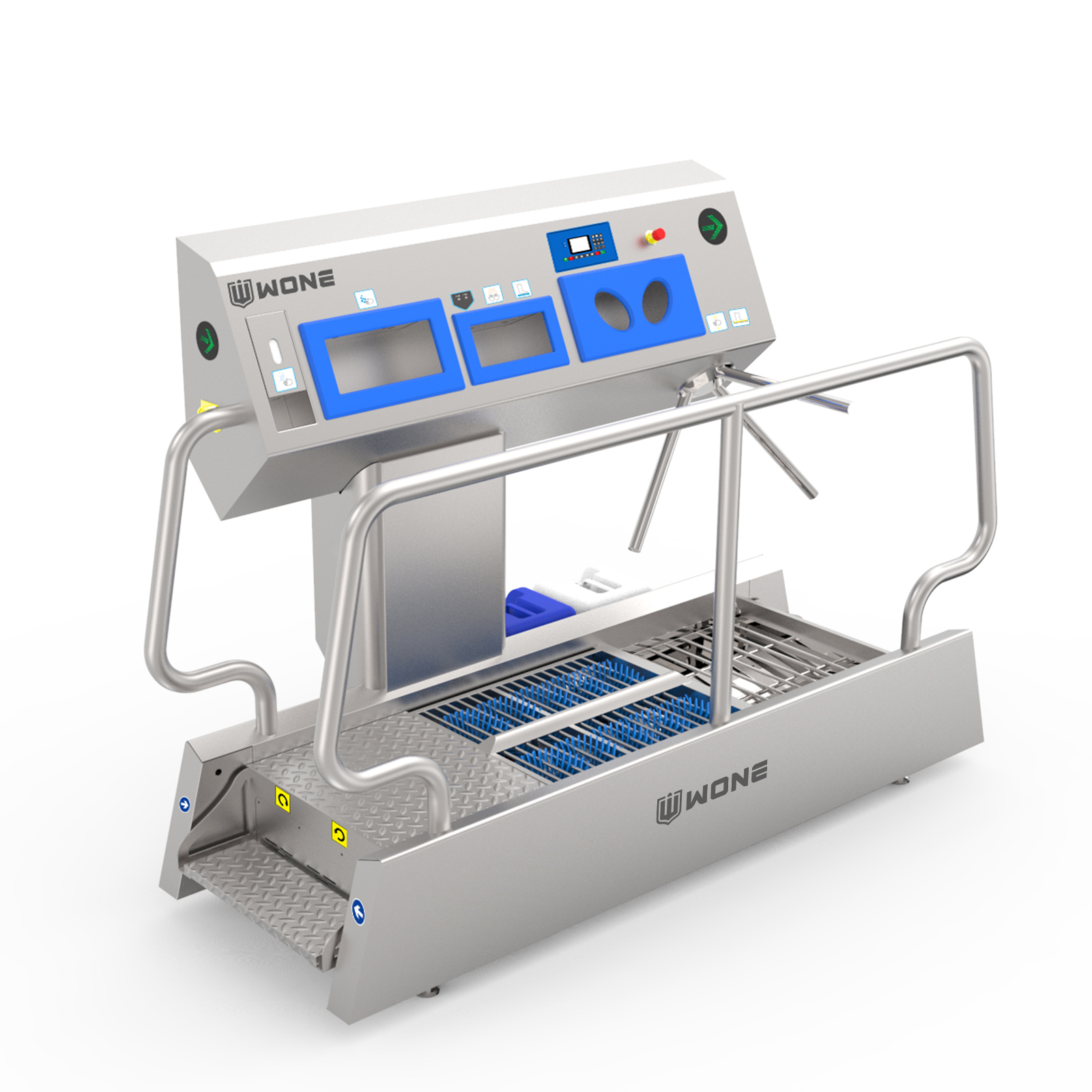

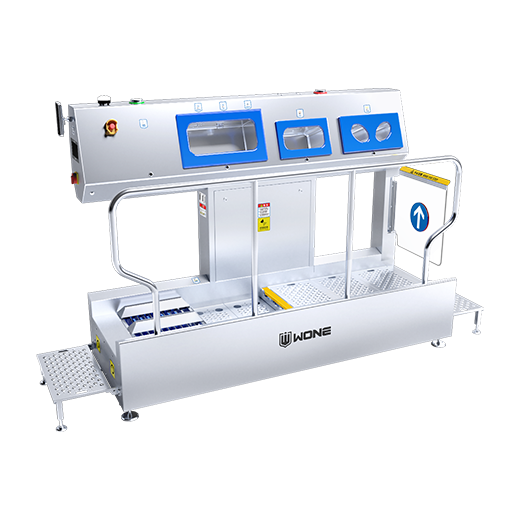

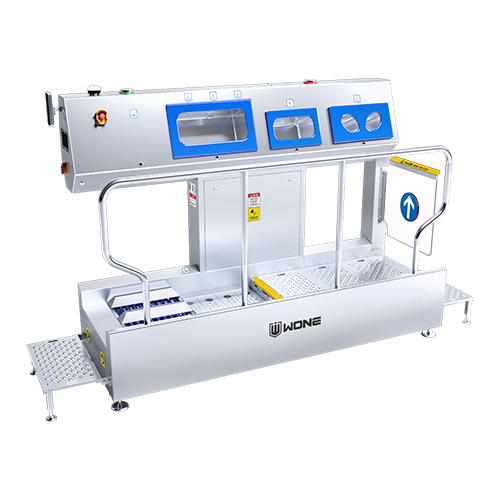

PBW-25 Personnel Hygiene Station
The PBW-25 is an economic solution for work shop hygienic entrance in the food factory. Guarantees optimal personnel hygiene from hand washing, hand drying, hand disinfection to sole cleaning and sole disinfection. All modules are sensor operated, easy to use and avoid cross-contamination.
●hand washing drying and disinfection
●footwear sole cleaning and disinfection
●304 stainless steel
●movable with wheels
●contactless cleaning and disinfection
●i-clean system for hygienic data traceability
Welcome to contact us if you have any ideas!
- Product Details
- Technical Parameters
- Order Guides
With the PBW-25 integrated hygiene station, employees can do footwear hygiene including sole cleaning and sanitation, and hand hygiene procedures including washing hands, drying hands, and disinfect hands the same time, which areefficient and time-saving.
Footwear hygiene and hand hygiene are done simultaneously. This hygiene stationis ideal for areas where strict hygiene is needed.
01- One stop and finish personal hygiene programs.
02- Simultaneous hand cleaning and sole sanitization, time-saving.
03- Considered design, ergonomic, and hygienic.
04- Industrial heavy duty.
05- Left and Right versions available.
01- Chambers are S/S304 fabricated, with rounded corners and sloped bottoms for easy draining water.
02- Auto soaping system, smooth foam generates, 1L large soap storage capacity.
03- Sensor-operated water tap with a bubbler, touchless operation for hand washing.
04- Industrial heavy-duty hand dryer, only needs 10s to dry two hands.
05- Hand disinfection chamber with light.
06- Stainless steel nozzles, state-of-the-art craft, good atomization of disinfectant.
01- Automatic active by sensors, brushes rotating time settable.
02- Sensors in the front pedestal for brushes auto active, sensors in the rear pedestal for brushes stop rotating.
03- Food-grade brushes, durable and long-lasting.
04- Brushes auto-humidified by water, sanitizer mixture, or alternate.
05- 2 horizontal brushes for sole cleaning.
06- Sole disinfection basin auto-refresh, sanitizer auto-dilution, and mixture ration control.
01- The Turnstile will be released only after hand disinfection.
02- i-clean system with various protection such as chemical lacking, motor overload, etc.
03- i-clean system enables the user to set sanitizer dose and dilution percentage, and sanitizer auto-sucking.
04- Card reader, Face ID, etc. monitoring system can be integrated into the i-clean system.
Detailed images
|
Name |
Personnel Hygiene Station |
||
|
Model |
BW-25 |
Clean type |
Personnel Hygiene |
|
Voltage |
220V/50Hz |
Safety protect |
Overload、Short circuit.Leakage protection |
|
Power |
2200W |
Waterproof |
IP54 |
|
Water Inlet |
1/2"(DN15) |
Operation mode |
Economic & Force |
|
Water Outlet |
1"(DN25) |
Control mode |
Auto |
|
Weight |
350KG |
Feature | Portable |
|
Dimension |
L2990x W1045x H1640mm |
Sanitizer volume |
2L |
WONE has been committing to the food safety and hygiene industry for more than 15 years,
providing one-stop hygiene solution including
personnel hygiene, equipment cleaning hygiene as well as air hygiene.
As the top manufacturer in China, we are still waiting for the chance to offer our help with our professional product knowledge and experience.
